1 Bedroom 3 Marla House Design with TV Lounge

Q: Is 1 bedroom 3 marla house design mein kitne bedrooms hain?

Sirf 1 bedroom hai (11'0" x 11'9"). Yeh design couples, single person, ya 2-3 members ki family ke liye hai.

Q: Bathroom attached hai kya?

Nahi, bathroom attached nahi hai . Yeh common bathroom hai (6'4½" x 5'0") jo bedroom se thoda door hai.

Q: Kitchen kitna bara hai?

Kitchen 7'0" x 8'0" hai - 56 sq feet . 1-2 logon ke liye sufficient hai.

Q: Lawn kitni bari hai?

Lawn 8'6" x 7'1½" hai - approximately 60 sq feet .

Q: Is design ke liye Apni Chhat Apna Ghar loan mil sakta hai?

Haan, bilkul. 3 marla plot hai to aap 15 lakh tak interest-free loan le sakte hain.

Q: Is design ki total construction cost kya hai?

Approximately 6.2 lakh to 8 lakh rupees . Exact cost city aur material quality par depend karti hai.

Q: Is design mein parking kahan hai?

Map mein "Paved Area" hai. Yeh parking ke liye use ho sakta hai. Car porch nahi hai to car ko paved area par ya ghar ke bahar khara karna parega.

Table of Content

Complete Ground Floor Plan for Couples or Single Person – 19′-3″ Width with Bathroom, Large Kitchen and Spacious Lawn

★ Important Notice ★
Yeh website apnichatapnagharr.pk sirf informational purposes ke liye hai. Hum Government of Punjab ya PHATA se affiliated nahi hain. Official portal hai: acag.punjab.gov.pk

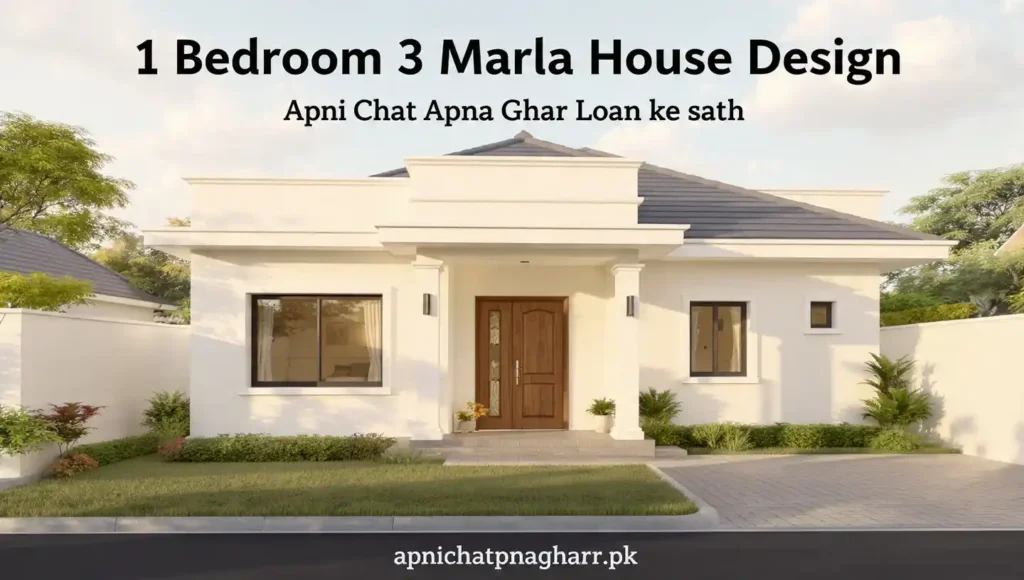

3D front elevation of 1 bedroom 3 marla house with 19 foot 3 inch width showing white cream walls grey flat roof wooden main door porch with pillars front lawn and paved parking area apnichatapnagharr.pk — 3D front elevation of 1 bedroom 3 marla house showing white cream walls, grey flat roof, wooden main door, large windows, porch with pillars, front lawn, and paved parking area.

Article Overview

Is article mein aap janenge:

1 bedroom 3 marla house design with complete dimensions (19′-3″ width)
Bedroom (11’0″ x 11’9″) – ek hi bedroom hai
Bathroom (6’4½” x 5’0″) – attached nahi lekin ghar mein hai
TV Lounge (17’9″ x 10’4½”) – bara family sitting area
Open Patio (6’9″ x 6’4½”) – ghar ke beech mein open area for light
Kitchen (7’0″ x 8’0″) – bara kitchen 56 sq ft
Lawn (8’6″ x 7’1½”) – spacious front garden
Porch (10’4½” x 5’4½”) – front entrance
Paved Area – parking ke liye
Apni Chhat Apna Ghar loan – 15 lakh interest-free loan
Complete material estimation and cost guide
10 FAQs

Yeh design couples, single person, ya small family (2-3 members) ke liye best hai.

Introduction – Is 1 Bedroom 3 Marla House Design Mein Kya Kya Hai?

Yeh 1 bedroom 3 marla house design un logon ke liye hai jo:

Sirf ek bedroom chahte hain (couple ya single person)
Bara TV Lounge chahte hain family time ke liye
Bara kitchen chahte hain (7′ x 8′)
Bari lawn chahte hain (8’6″ x 7’1½”)
Proper bathroom chahte hain
Open Patio se natural light aur ventilation chahiye

Is design ki poori dimensions:

Feature	Size
Plot Width	19′-3″ (19.25 feet)
Bedroom	11’0″ x 11’9″
TV Lounge	17’9″ x 10’4½”
Open Patio	6’9″ x 6’4½”
Kitchen	7’0″ x 8’0″
Bathroom	6’4½” x 5’0″
Porch	10’4½” x 5’4½”
Lawn	8’6″ x 7’1½”

Is 1 bedroom 3 marla house design ke through aap Apni Chhat Apna Ghar scheme se 15 lakh tak interest-free loan le sakte hain.

Complete Layout – Room by Room Explanation

Plot Width: 19′-3″

Map ke top par 19′-3″ likha hai. Iska matlab yeh plot 19.25 feet wide hai. Standard 3 marla plot 25 ft x 45 ft hota hai lekin yeh design narrow plot (19.25 ft width) ke liye hai.

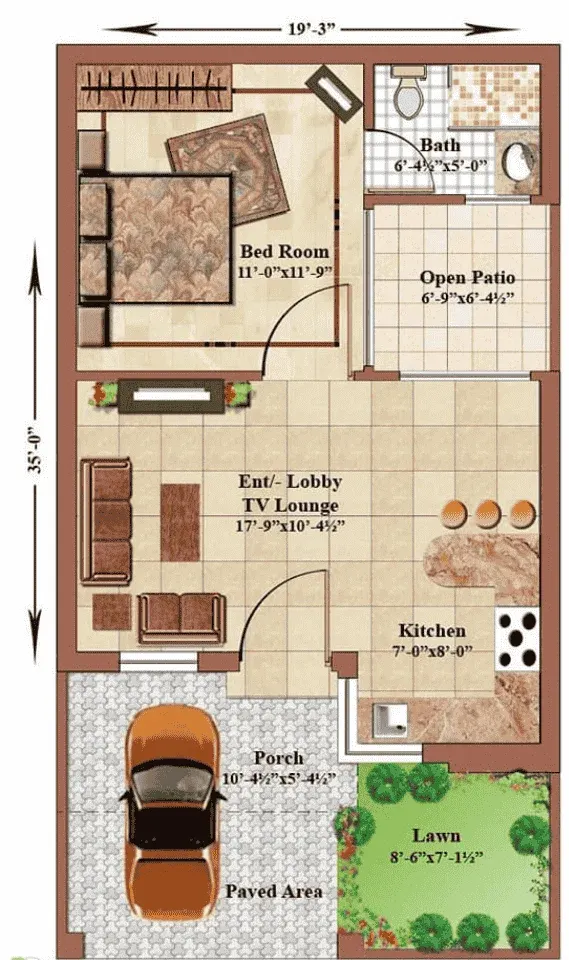

3D floor plan drawing of 1 bedroom 3 marla house with 19 foot 3 inch width showing bedroom 11x11.9 feet TV lounge 17.9x10.4 feet kitchen 7x8 feet bathroom 6.4x5 feet open patio 6.9x6.4 feet porch 10.4x5.4 feet lawn 8.6x7.1 feet and paved area apnichatapnagharr.pk — Complete 3D floor plan of 1 bedroom 3 marla house (19′-3″ width) showing bedroom (11’x11’9″), TV lounge (17’9″x10’4½”), kitchen (7’x8′), bathroom (6’4½”x5′), open patio (6’9″x6’4½”), porch (10’4½”x5’4½”), lawn (8’6″x7’1½”) and paved area.

Bedroom (11’0″ x 11’9″)

Yeh sirf ek bedroom hai. Size 11 feet wide aur 11 feet 9 inches deep hai.

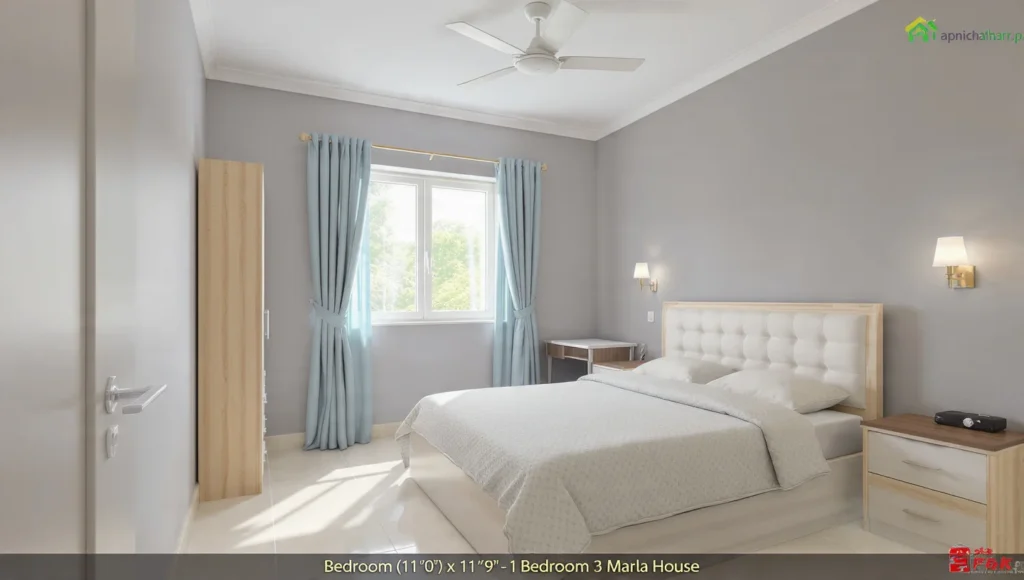

Bedroom interior for 1 bedroom 3 marla house showing double bed with headboard two nightstands sliding wardrobe study table near window light blue walls and beige floor tiles apnichatapnagharr.pk — Cozy bedroom interior (129 sq ft) for 1 bedroom 3 marla house with double bed, two nightstands, sliding wardrobe, study table near window, and light blue calming walls.

Position: Map ke mutabiq, yeh bedroom right side par hai. TV Lounge ke right mein aur Bathroom ke upar.

Area: Approximately 129 sq feet.
Kis ke liye: Couple, single person, ya maa baap ke liye.

Kya rakh sakte hain:

Furniture	Size	Placement
Double bed	6′ x 6’6″	Center ya corner mein
Nightstands	1.5′ x 1.5′ (2 pcs)	Bed ke dono taraf
Wardrobe	4′ x 2′	Ek wall par
Study table	2′ x 3′	Window ke paas
Dressing table	2′ x 1.5′	Optional

Window: Map mein window nahi dikhi lekin standard design mein 1 window honi chahiye (approx 4′ x 4′) cross ventilation ke liye.

TV Lounge (17’9″ x 10’4½”)

Yeh sab se bara kammra hai. 17 feet 9 inches long aur 10 feet 4.5 inches wide.

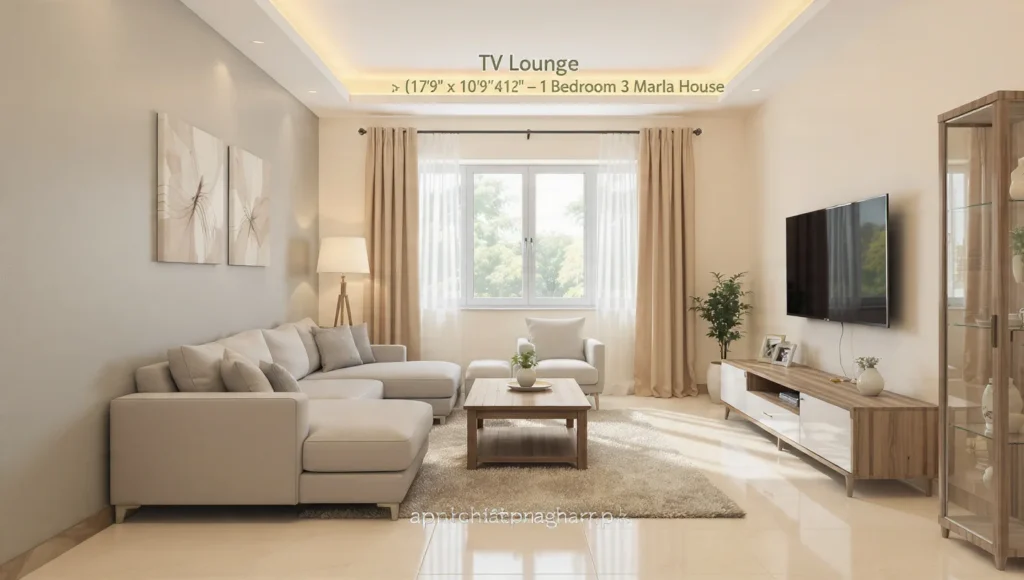

TV lounge interior for 1 bedroom 3 marla house showing L-shaped grey sofa wall mounted TV unit wooden center table showcase extra chairs floor lamp large window with beige curtains and light cream walls apnichatapnagharr.pk — Modern TV lounge interior (184 sq ft) for 1 bedroom 3 marla house with L-shaped sofa, wall mounted TV unit, center table, showcase, extra chairs, floor lamp, and large window with curtains.

Position: Ghar ke front center mein. Porch ke andar aate hi yeh lounge hai. Left side par Open Patio aur Kitchen hai, right side par Bedroom hai.
Area: Approximately 184 sq feet.

Kya rakh sakte hain:

Furniture	Quantity	Placement
L-shaped sofa	1	Corner mein
TV unit	1	Wall mounted
Center table	1	Sofa ke samne
Showcase	1	Ek wall par
Extra chairs	2-3	Guests ke liye
Floor lamp	1	Corner mein

Yeh lounge family time ke liye perfect hai. TV dekhna, guests ko bithana, ya family gathering sab ho sakta hai. Agar aapko itna bara lounge nahi chahiye to aap isme se thodi space le kar doosra bedroom bana sakte hain.

Open Patio (6’9″ x 6’4½”)

Yeh open area hai jis par roof nahi hoti. Size 6 feet 9 inches x 6 feet 4.5 inches.

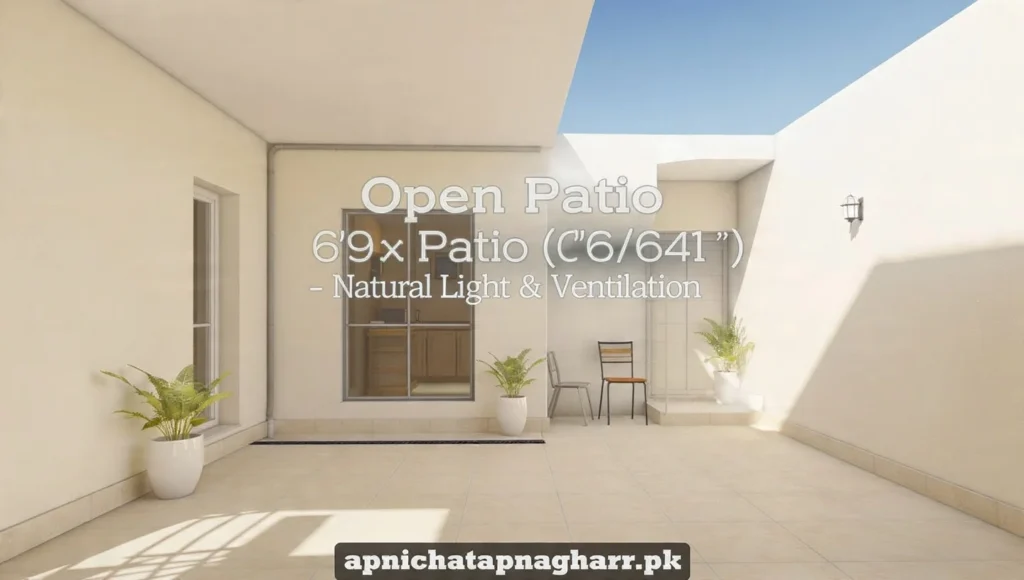

Open patio for 1 bedroom 3 marla house showing open sky natural light coming from above small potted plants in corners drain for rainwater and wall mounted light apnichatapnagharr.pk — Open patio area (43 sq ft) for 1 bedroom 3 marla house with open sky, natural light coming from above, small potted plants, drainage system, and wall mounted light.

Position: TV Lounge aur Kitchen ke beech mein. Entrance Lobby ke saath connected.
Area: Approximately 43 sq feet.

Is area ko kaise use karein:

✅ Natural light source – ghar ke beech mein light aati hai
✅ Ventilation – fresh air andar aati hai
✅ Small plants – 2-3 pots rakh sakte hain
✅ Sitting area – 2 small chairs rakh sakte hain (evening tea ke liye)
✅ Drainage – floor thoda neecha banayein taake pani nikal jaye

Important: Open Patio mein chhat nahi dalni. Is se ghar thanda rehta hai aur electricity bachti hai.

Entrance Lobby

Map mein “Ent/-Lobby” likha hai. Yeh ek small passage hai jo TV Lounge, Open Patio, aur Bedroom ko connect karta hai.

Position: TV Lounge aur Open Patio ke beech mein.
Size: Approximately 4′ x 5′ (approx).

Use: Ghar mein aane ke baad yahan se different rooms mein jaa sakte hain.

Kitchen (7’0″ x 8’0″)

Yeh kitchen 7 feet wide aur 8 feet deep hai. 56 sq feet ka kitchen hai – jo 1 bedroom house ke liye sufficient hai.

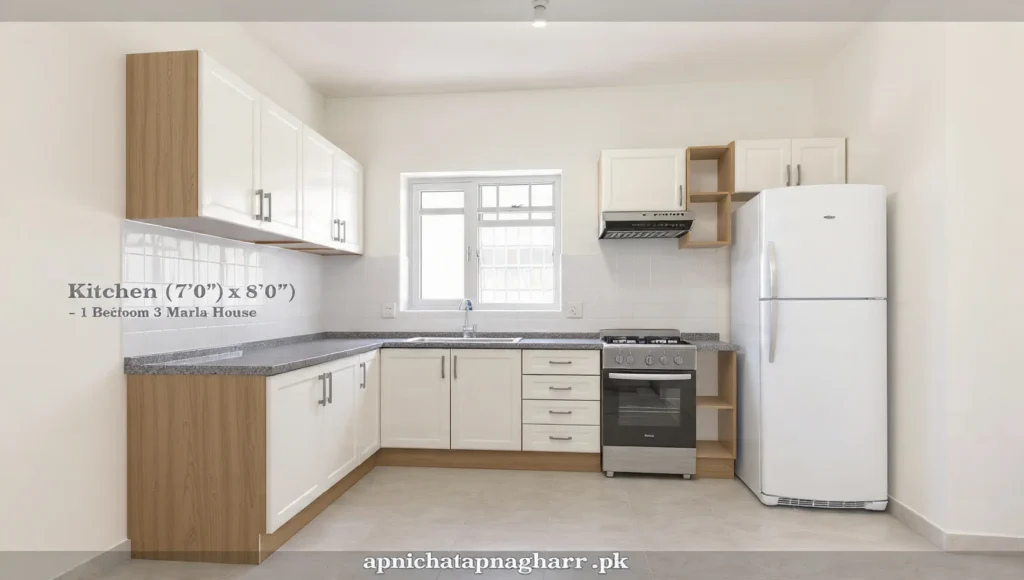

L-shaped kitchen interior for 1 bedroom 3 marla house showing white upper and lower cabinets grey countertop stainless steel sink under small window cooking range with exhaust fan and light beige floor tiles apnichatapnagharr.pk — Modern L-shaped kitchen (56 sq ft) for 1 bedroom 3 marla house with white cabinets, grey countertop, sink under window, cooking range with exhaust fan, and light beige floor tiles.

Position: Open Patio ke bagal mein (left side).
Area: Approximately 56 sq feet.

Kya rakh sakte hain:

Item	Type
Cabinets	L-shaped (space save)
Upper cabinets	For storage
Sink	Under window
Cooking range	With exhaust fan
Refrigerator	Small to medium
Breakfast counter	Optional

Is kitchen mein kaam chal sakta hai? Haan, 56 sq feet ka kitchen 1-2 logon ke liye sufficient hai. L-shaped cabinets se space achi tarah use ho sakti hai.

Bathroom (6’4½” x 5’0″)

Yeh bathroom clearly included hai. Size 6 feet 4.5 inches x 5 feet 0 inches.

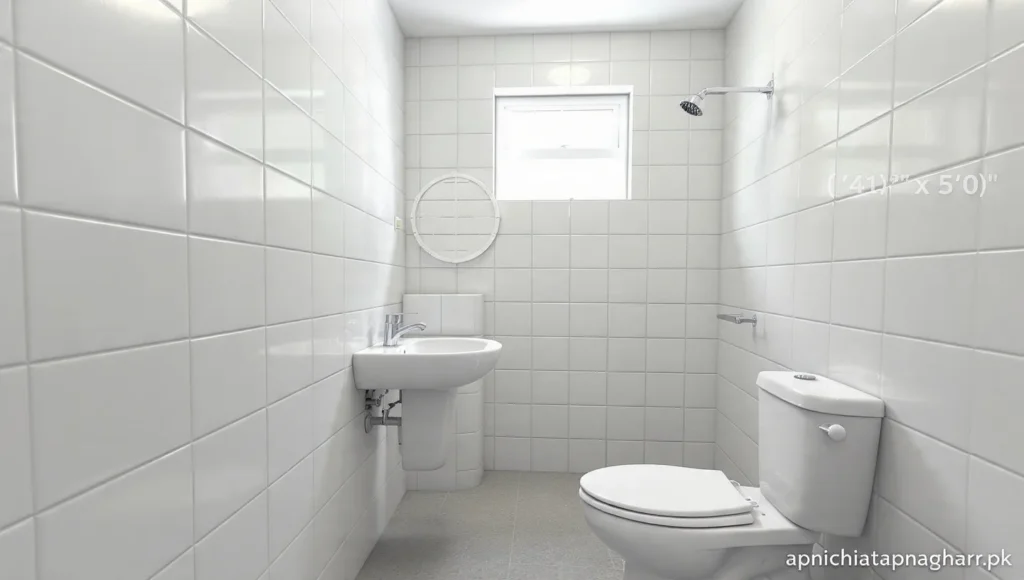

Bathroom interior for 1 bedroom 3 marla house showing white commode sink with mirror shower area small high window for ventilation light grey anti-skid floor tiles and white ceramic walls apnichatapnagharr.pk
1 bedroom 3 marla house design — Functional bathroom (32 sq ft) for 1 bedroom 3 marla house with commode, sink with mirror, shower area, small high window for ventilation, and anti-skid grey floor tiles.

Position: Bedroom ke neeche (south side), Kitchen ke right mein.
Area: Approximately 32 sq feet.

Kya rakh sakte hain:

Item	Size
Commode / toilet	1.5′ x 2.5′
Sink / wash basin	1.5′ x 1.5′
Shower area	2′ x 2′
Small window	2′ x 2′ (for ventilation)

Important: Is bathroom mein attached nahi hai – yeh common bathroom hai. Bedroom se thoda door hai lekin ghar mein ek proper bathroom hona bohat zaroori hai. Agar attached bathroom chahiye to design modify karna parega.

Porch (10’4½” x 5’4½”)

Yeh front entrance covered area hai.

Size: 10 feet 4.5 inches x 5 feet 4.5 inches.

Position: Ghar ke front mein, TV Lounge se pehle.
Area: Approximately 56 sq feet.

Use:

Joote utarne ke liye
Guests ka welcome karne ke liye
Chai peene ke liye (2 small chairs rakh sakte hain)
Barish se bachne ke liye

Lawn (8’6″ x 7’1½”)

Yeh garden area hai. Size 8.5 feet x 7.125 feet hai. Approximately 60 sq feet.

Position: Porch ke bagal mein, front side par.

Kya laga sakte hain:

Grass (artificial ya natural)
Small flowers / plants
1-2 small trees (potted)
Garden lights (evening ke liye)
Small fountain (optional)

Paved Area

Map mein “Paved Area” likha hai. Yeh parking ya walkway ka area hai.

Position: Lawn ke bagal mein, front side par.

Use:

Car parking (1 small car)
Motorcycle / bike parking
Ghar ke andar aane ka rasta

Complete Room Dimensions Table

Room	Size (ft/in)	Size (ft)	Area (sq ft)
Plot Width	19′-3″	19.25 ft	–
Bedroom	11’0″ x 11’9″	11.0 x 11.75	129 sq ft
TV Lounge	17’9″ x 10’4½”	17.75 x 10.375	184 sq ft
Open Patio	6’9″ x 6’4½”	6.75 x 6.375	43 sq ft
Kitchen	7’0″ x 8’0″	7.0 x 8.0	56 sq ft
Bathroom	6’4½” x 5’0″	6.375 x 5.0	32 sq ft
Porch	10’4½” x 5’4½”	10.375 x 5.375	56 sq ft
Lawn	8’6″ x 7’1½”	8.5 x 7.125	60 sq ft

Total Covered Area (without lawn and paved area): Approximately 500-520 sq ft

Is 1 Bedroom Design Ki Speciality Kya Hai?

Yeh design 1 bedroom wala hai is liye:

Feature	Size	Benefit
Sirf 1 bedroom	129 sq ft	Couple ya single person ke liye perfect
TV Lounge bohat bara	184 sq ft	Family time, guests, entertainment
Kitchen bara	56 sq ft	Cooking ke liye sufficient space
Lawn bari	60 sq ft	Garden, plants, outdoor sitting
Bathroom included	32 sq ft	Proper bathroom facility
Open Patio	43 sq ft	Natural light and ventilation

Kis type ke liye best hai:

Type	Reason
✅ Couple (naye shadi shuda)	Sirf ek bedroom chahiye, bara lounge ho
✅ Single person	Akela rehta hai to itna kaafi hai
✅ Small family (2-3 members)	Maa baap aur ek bacha
✅ Senior citizens	Ek hi bedroom mein rehna easy hai
✅ Rental property	1 bedroom house easily rent ho jata hai

Is Design Mein Kya Kamiya Hain?

Koi bhi design perfect nahi hota. Is design mein yeh kamiya hain:

Sirf 1 bedroom hai – Agar family barhti hai to doosre bedroom ki zaroorat paregi.
Bathroom attached nahi hai – Bedroom se bathroom thoda door hai. Raat ko uthne mein problem ho sakti hai.
TV Lounge bohat bara hai – 184 sq feet. Agar aapko itna bara lounge nahi chahiye to space waste ho sakti hai. Aap isme se thodi space le kar doosra bedroom bana sakte hain.
Plot width 19.25 ft hai – Standard 3 marla plot 25 ft wide hota hai. Yeh narrow plot ke liye design hai.
Open Patio mein barish ka pani – Open area hai to pani a sakta hai. Drainage achi banana paregi.

Agar aapko doosra bedroom chahiye to kya karein?

TV Lounge (184 sq ft) se thodi space le kar doosra bedroom bana sakte hain. TV Lounge ko 12′ x 12′ (144 sq ft) kar do aur 40 sq ft ka small bedroom bana lo. Phir yeh 2 bedroom wala design ban jayega.

Material Estimation for This 1 Bedroom 3 Marla House Design

Is 1 bedroom 3 marla house design ke liye kitna material chahiye? Yeh lo estimation:

Material	Quantity	Approximate Cost (Rs)
Cement	220-260 bags	61,000 – 72,000
Bricks	12,000 – 14,000	36,000 – 42,000
Sand (Bajri)	350-450 cubic feet	10,000 – 13,000
Crush / Aggregate	400-500 cubic feet	16,000 – 20,000
Steel (Saria)	1,200 – 1,500 kg	120,000 – 150,000
Tiles (Floor + Wall)	1,200 – 1,500 sq ft	48,000 – 60,000
Paint	–	15,000 – 25,000
Plumbing Material (with bathroom)	–	15,000 – 20,000
Electrical Material	–	12,000 – 18,000
Wood / Doors / Windows	–	40,000 – 60,000
Grey Structure Total		370,000 – 480,000
Finishing + Labour		250,000 – 320,000
Total Construction Cost		620,000 – 800,000

Note: Yeh estimate approximate hai. Is design mein TV Lounge bara hai (184 sq ft) lekin sirf 1 bedroom hai. Is liye cost 6.2 lakh se 8 lakh ke beech mein hai.

Apni Chhat Apna Ghar Loan for This 1 Bedroom 3 Marla House Design

Is 1 bedroom 3 marla house design ke liye aap Apni Chhat Apna Ghar scheme se loan le sakte hain.

Loan Details:

Feature	Detail
Maximum Loan Amount	Rs 15 lakh (1.5 million)
Interest Rate	0% (completely interest-free)
Repayment Period	7 years
Monthly Installment	Approximately Rs 14,000
Grace Period	3 months before first installment
Land Requirement	Urban: 1-5 marla

Eligibility for This Loan:

Punjab resident (CNIC address)
Age 18 years or above
PMT score 60 or less
No existing residential property
NADRA verified head of family

How to Apply for Loan:

Step 1: Official portal acag.punjab.gov.pk par jayein

Step 2: CNIC aur mobile number se account banayein

Step 3: Documents upload karein:

CNIC (front and back)
Land ownership documents
NSER / PSER registration (PMT score)
Income proof
Utility bill (Punjab residency proof)
Passport size photo

Step 4: Form submit karein

Step 5: Balloting ka wait karein

Step 6: Loan approve ho to construction start karein

Status Check: Apni application status check karne ke liye 8070 par apna CNIC number send karein.

Agar aapko loan application ke bare mein detail chahiye to hamara How to Apply for Apni Chat Apna Ghar article zaroor parhein.

Is Design Ke Liye Kitna Loan Milega?

Is 1 bedroom 3 marla house design ki construction cost approximately 6.2 lakh to 8 lakh hai.

Apni Chhat Apna Ghar scheme 15 lakh tak loan deti hai.

Iska matlab: Aap apni poori construction ke liye loan le sakte hain. Agar cost 8 lakh hai to aap 8 lakh loan le sakte ho. Agar cost 10 lakh hai to bhi loan mil jayega kyunke limit 15 lakh hai.

Monthly installment calculation:

Loan Amount	Monthly Installment (approx)
6.2 lakh	Rs 7,400
8 lakh	Rs 9,500
10 lakh	Rs 11,900
15 lakh	Rs 14,000

Construction Timeline for This 1 Bedroom 3 Marla House Design

Is design ko banne mein kitna time lagega? Yeh lo timeline:

Phase	Work	Time
Phase 1	Site clearance + excavation + foundation	1-2 weeks
Phase 2	Column casting + plinth beam	1-2 weeks
Phase 3	Brickwork + columns	3-4 weeks
Phase 4	Roof slab casting	1-2 weeks
Phase 5	Open Patio area preparation	1 week
Phase 6	Plaster + flooring	2-3 weeks
Phase 7	Plumbing + electrical	1-2 weeks
Phase 8	Doors + windows + paint	2-3 weeks
Phase 9	Lawn + paved area + finishing	1-2 weeks
Total	Complete House	3-4 months

Note: Open Patio ko open rakhna hai, upar roof nahi dalni. Is se thoda time aur cost bachta hai.

Tips to Save Money on Construction

Is 1 bedroom 3 marla house design par paise bachane ke liye:

1. Open Patio ko open rakhein
Is area par roof nahi dalni. Is se cost kam hoti hai aur light aati hai.

2. Sirf 1 bedroom hai to furniture kam chahiye
Ek hi bedroom hai to ek hi bed, ek hi wardrobe. Furniture cost half ho jayegi.

3. TV Lounge mein simple furniture rakhein
Bara lounge hai to furniture mehenga mat lagayein. Simple sofa set kaafi hai.

4. Kitchen bara hai lekin mehenga design na karein
56 sq feet kitchen hai lekin simple L-shaped cabinets laga lo. Mehenga modular kitchen ki zaroorat nahi.

5. Lawn choti hai to maintenance easy hai
60 sq feet lawn hai. Khud maintain kar sakte ho.

6. Material bulk mein kharidein
Cement, bricks, steel ek saath kharidein. Thora thora karne se zyada lagta hai.

7. Construction start karne se pehle complete plan final karein
Beech mein changes karne se cost barhti hai.

8. Khud supervision karein
Roz site par jayein. Labour ko dekhna zaroori hai. Nahi to material waste hota hai.

Frequently Asked Questions

Is 1 bedroom 3 marla house design mein kitne bedrooms hain?

Sirf 1 bedroom hai (11’0″ x 11’9″). Yeh design couples, single person, ya 2-3 members ki family ke liye hai.

Kya is design mein doosra bedroom bana sakte hain?

Haan. TV Lounge (184 sq ft) se thodi space le kar doosra bedroom bana sakte hain. TV Lounge ko 12′ x 12′ (144 sq ft) kar do aur 40 sq ft ka small bedroom bana lo.

Bathroom attached hai kya?

Nahi, bathroom attached nahi hai. Yeh common bathroom hai (6’4½” x 5’0″) jo bedroom se thoda door hai.

Kitchen kitna bara hai?

Kitchen 7’0″ x 8’0″ hai – 56 sq feet. 1-2 logon ke liye sufficient hai.

Lawn kitni bari hai?

Lawn 8’6″ x 7’1½” hai – approximately 60 sq feet.

Is design ke liye Apni Chhat Apna Ghar loan mil sakta hai?

Haan, bilkul. 3 marla plot hai to aap 15 lakh tak interest-free loan le sakte hain.

Is design ki total construction cost kya hai?

Approximately 6.2 lakh to 8 lakh rupees. Exact cost city aur material quality par depend karti hai.

Open Patio ki wajah se ghar mein barish ka pani to nahi aayega?

Open Patio mein floor thoda neecha banaya jata hai aur drainage rakha jata hai. Pani nikal jata hai. Aap chhat bhi laga sakte hain agar chahein to.

Is design mein parking kahan hai?

Map mein “Paved Area” hai. Yeh parking ke liye use ho sakta hai. Car porch nahi hai to car ko paved area par ya ghar ke bahar khara karna parega.

Kya main is design mein changes kar sakta hun?

Haan, aap apni need ke mutabiq changes kar sakte hain. Lekin construction start karne se pehle finalize karlein.

Important Pages on Apni Chat Apna Ghar

Agar aapko scheme ke bare mein mazeed maloomat chahiye to yeh pages check karein:

Page	Description	Link
Homepage	Scheme ki taza updates	Visit
Eligibility Criteria	Kiska apply kar sakta hai	Read
Documents Required	Konsay documents chahiye	Read
How to Apply	Step by step guide	Read
Modern 3 Marla Design	2 bedroom design (pehla)	Read
3 Marla TV Lounge Design	1 bedroom design (yeh article)	Current page
District Quota	District wise seats	Read
Joint Family Scheme	Joint family rules	Read
Progress Report	87k houses complete	Read
FAQs	Aksar poochay janay walay sawaal	Read
Contact Us	Koi problem ho to rabta karein	Read

Conclusion

Yeh 1 bedroom 3 marla house design un logon ke liye best hai jo:

Sirf ek bedroom chahte hain
Bara TV Lounge chahte hain family time ke liye
Bara kitchen aur bari lawn chahte hain
Proper bathroom chahte hain
Couple ya single person hain

Key Takeaways:

✅ Sirf 1 bedroom (11’0″ x 11’9″) – 129 sq ft
✅ TV Lounge bara (17’9″ x 10’4½”) – 184 sq ft
✅ Kitchen bara (7’0″ x 8’0″) – 56 sq ft
✅ Lawn bari (8’6″ x 7’1½”) – 60 sq ft
✅ Bathroom included (6’4½” x 5’0″) – 32 sq ft
✅ Open Patio for natural light (6’9″ x 6’4½”)
✅ Construction cost: 6.2 lakh to 8 lakh
✅ Apni Chhat Apna Ghar loan: 15 lakh interest-free

Next Steps:

Is design ko apni need ke mutabiq modify karein (agar chahein to TV Lounge se doosra bedroom bana lein)
Apne documents ready karein (CNIC, land papers, NSER registration)
Official portal acag.punjab.gov.pk par apply karein
Loan approve ho to construction start karein

Agar aap eligible hain to deri na karein. Apna 1 bedroom 3 marla house design banayein aur apni chhat ka sapna poora karein.

Agar aapko koi problem ho to hamse Contact Us page par rabta kar sakte hain.

[DISCLAIMER]
Yeh article informational purposes ke liye hai. Construction cost approximate hai aur city, area, material quality par depend karta hai. Map source: civilingenierspk.com / Discovering Floor Plan. Official updates ke liye hamesha acag.punjab.gov.pk check karein.
