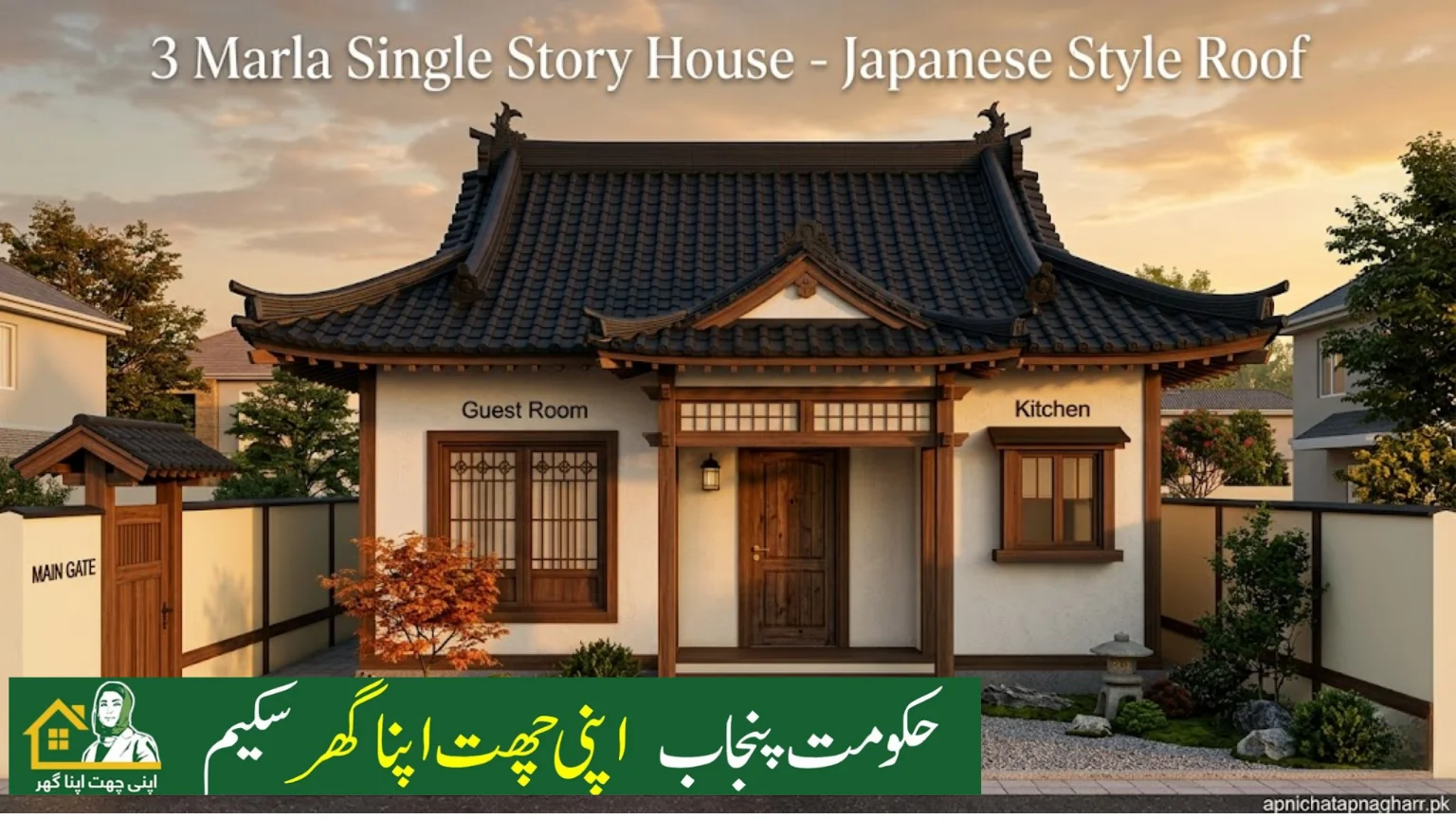

3 Marla Single Story House with Japanese Roof

Table of Content

Overview 3 marla single story house with japanese roof

3 marla single story house with japanese roof | Is article mein aap ek unique 3 marla single story house design ke baare mein janenge. Is design ki sab se khaas baat Japanese style roof hai. Pagoda style roof curved edges ke saath hota hai aur overlapping layers hoti hain.

Is design mein 1 master bedroom hai. Guest room left side par hai jo main gate ke paas hai. Kitchen right side par hai. Common bathroom bhi hai. Veranda center mein hai. Boundary wall aur main gate bhi hai.

Is design mein aap Apni Chhat Apna Ghar scheme se 15 lakh tak interest-free loan le sakte hain.

Background History of Apni Chhat Apna Ghar Scheme

Apni Chhat Apna Ghar scheme Punjab government ki ek bohat successful housing scheme hai. Yeh scheme 2022 mein launch hui thi. CM Maryam Nawaz ne is scheme ko Punjab ki tareekh ki sab se badi housing initiative qarar diya tha.

Is scheme ka maqsad low-income families ko affordable housing provide karna hai. Scheme ke through families interest-free loan le kar apna ghar bana sakti hain. Loan ki maximum limit 15 lakh rupees hai. Yeh loan 7 saal mein easy installments mein wapas karna hai.

Scheme launch hone ke baad se ab tak 91,000+ houses complete ho chuke hain. 42,000 houses under construction hain. 1.176 million applications receive ho chuki hain. 135,410 families ko interest-free loan mil chuka hai.

Scheme ki recovery rate 99%+ hai. Yeh bohat impressive hai. February 2026 mein scheme ko joint families ke liye bhi expand kar diya gaya. Ab married sons jo parents ke saath rehte hain wo independent applicant ban sakte hain.

Apni Zameen Apna Ghar scheme ke through landless families ko free 3 marla plots bhi diye ja rahe hain. 2,000 families ko pehle phase mein plots allot hue hain.

Agar aap is scheme ke baare mein mazeed janna chahte hain to hamara Eligibility Criteria page zaroor parhein.

Japanese Style Roof – Kya Hai Khaas Baat?

Is design ki sab se khaas baat Japanese style roof hai. Japanese roofs ko pagoda style bhi kaha jata hai.

Japanese Roof Ki Khasoosiyaat:

Curved edges hoti hain (normal roofs straight hoti hain)
Overlapping layers hoti hain (2 ya 3 layers)
Dark grey ya black color tiles use hote hain
Wooden beam accents bhi lagaye ja sakte hain
Yeh roof barish ka pani aasani se nikaal deti hai
Ghar ko unique aur attractive look deti hai

Is design mein roof kaise hogi:

Dark grey color tiles
Slightly curved edges on all sides
2 overlapping layers
Simple wooden beam accents on edges

Japanese style roof thoda mehnga hota hai lekin ghar ki beauty bohat barha deta hai. Agar aap unique design chahte hain to yeh roof aap ke liye best hai.

Plot Dimensions and Layout Overview

Yeh design 3 marla plot ke liye banaya gaya hai. 3 marla plot 817 square feet ka hota hai. Approximate dimensions 25 feet x 33 feet hote hain.

Plot Details:

Element	Measurement
Plot Size	3 marla
Total Area	817 sq ft
Ground Floor Construction	418 sq ft
Open Area	399 sq ft

Is design mein kya kya hai:

1 master bedroom (12′ x 12′)
1 guest room (10′ x 10′) – left side, main gate ke paas
1 kitchen (8′ x 8′) – right side
1 common bathroom (5′ x 6′)
1 veranda (8′ x 6′)
Japanese style roof
Boundary wall with main gate

Agar aapko district-wise quota ke baare mein janna hai to hamara District Based Quota page zaroor parhein.

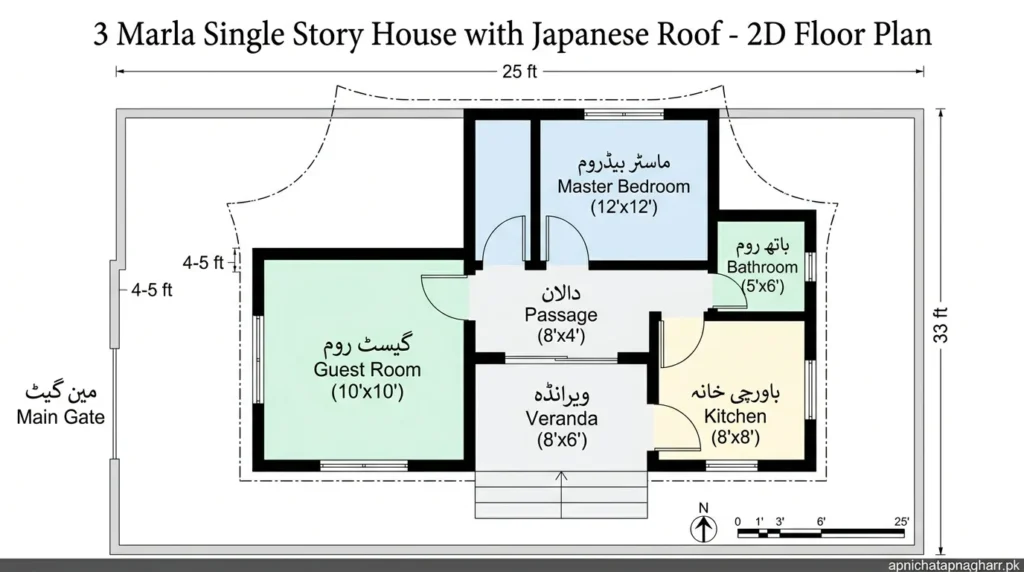

2D floor plan of 3 marla Japanese style roof house showing master bedroom 12x12 guest room 10x10 near main gate kitchen 8x8 bathroom 5x6 veranda 8x6 passage 8x4 boundary wall and main gate on left side apnichatapnagharr.pk — Complete 2D floor plan of 3 marla single story house with Japanese pagoda roof showing master bedroom (12’x12′), guest room (10’x10′) near main gate, kitchen (8’x8′), common bathroom (5’x6′), veranda (8’x6′), passage (8’x4′), boundary wall and main gate on left side.

Complete Dimensions Table

Ground Floor Rooms:

Room	Size (ft)	Area (sq ft)
Master Bedroom	12′ x 12′	144 sq ft
Guest Room	10′ x 10′	100 sq ft
Kitchen	8′ x 8′	64 sq ft
Common Bathroom	5′ x 6′	30 sq ft
Veranda	8′ x 6′	48 sq ft
Passage	8′ x 4′	32 sq ft
Total Covered Area		418 sq ft

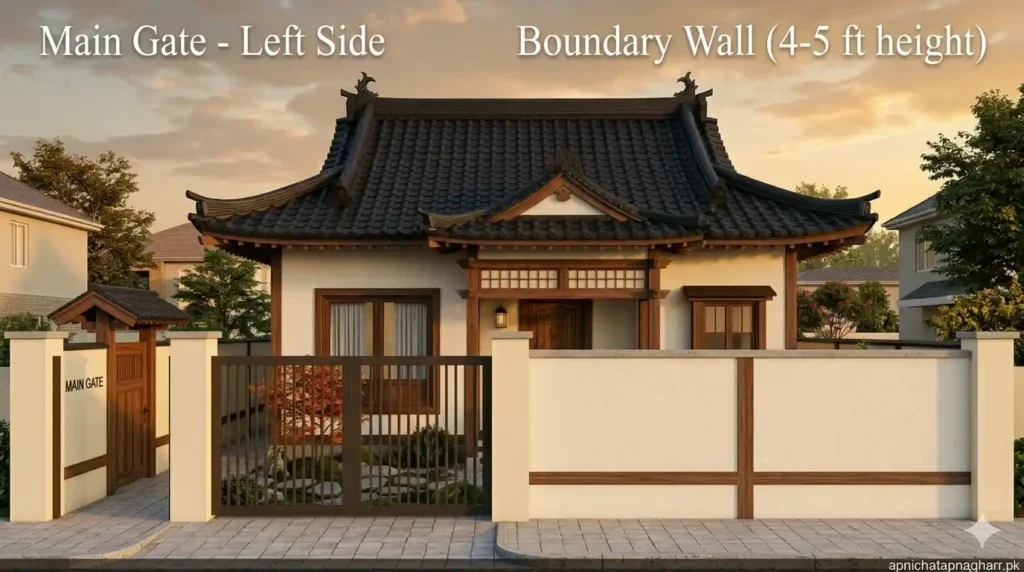

Main Gate and Boundary Wall

Sab se pehle baat karte hain main gate ki. Main gate left side par hai. Guest room main gate ke paas hai. Is se guests ko aane mein aasani hoti hai.

Boundary Wall:

Height: 4-5 feet
Color: White cream (matching house)
Main gate: Iron ya wooden, 8-10 feet chora

Main gate ke andar aate hi left side par guest room hai. Right side par thoda sa open area hai. Center mein veranda hai.

Agar aapko is design ke liye documents chahiye to hamara Documents Required page zaroor parhein.

Guest Room – 10′ x 10′ (Left Side, Near Main Gate)

Guest room 10 feet x 10 feet ka hai. Yeh 100 square feet ka hai. Yeh left side par hai aur main gate ke paas hai.

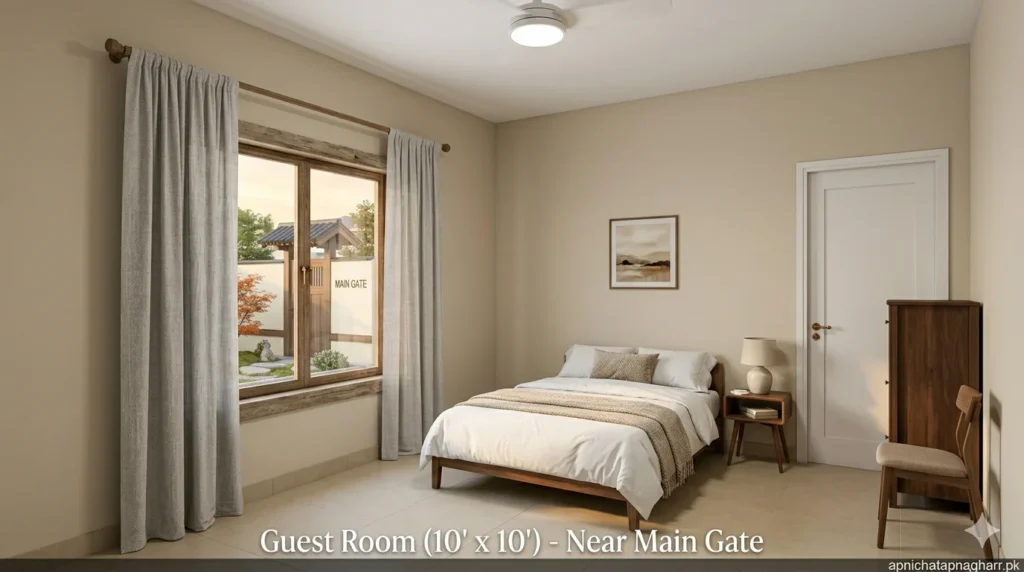

Guest room interior 10x10 feet near main gate showing single bed small wardrobe side table chair window with light grey curtains and light grey walls for 3 marla Japanese style roof house apnichatapnagharr.pk — Guest room interior (100 sq ft) located near main gate on left side with single bed, small wardrobe, side table, chair, window with light grey curtains, and light grey walls.

Is room ki khaasiyat:

Main gate ke paas hone ki wajah se guests ko aane mein aasani hoti hai
Unko andar tak nahi aana parta
Privacy bhi rehti hai

Kya rakh sakte hain:

Single bed ya small double bed
Small wardrobe
Small table and chair
Sofa (guest sitting ke liye)

Window: Guest room mein ek window honi chahiye. Window 3′ x 4′ ki ho sakti hai. Window front ya side wall par ho sakti hai.

Walls: Light grey ya light beige color rakh sakte hain.

Yeh room sirf guests ke liye nahi, balke study room ya home office ke liye bhi use kar sakte hain.

Veranda – 8′ x 6′ (Center Front)

Veranda 8 feet x 6 feet ka hai. Yeh 48 square feet ka hai. Yeh center front mein hai.

Veranda ki khaasiyat:

Main entrance hai
Japanese style roof ki wajah se veranda bhi unique lagega
2 small pillars honge

Veranda mein kya rakh sakte hain:

2 chairs (evening mein baithne ke liye)
Small table
Plants

Veranda ki chhat Japanese style roof ke saath match karegi.

Kitchen – 8′ x 8′ (Right Side)

Kitchen 8 feet x 8 feet ka hai. Yeh 64 square feet ka hai. Yeh right side par hai.

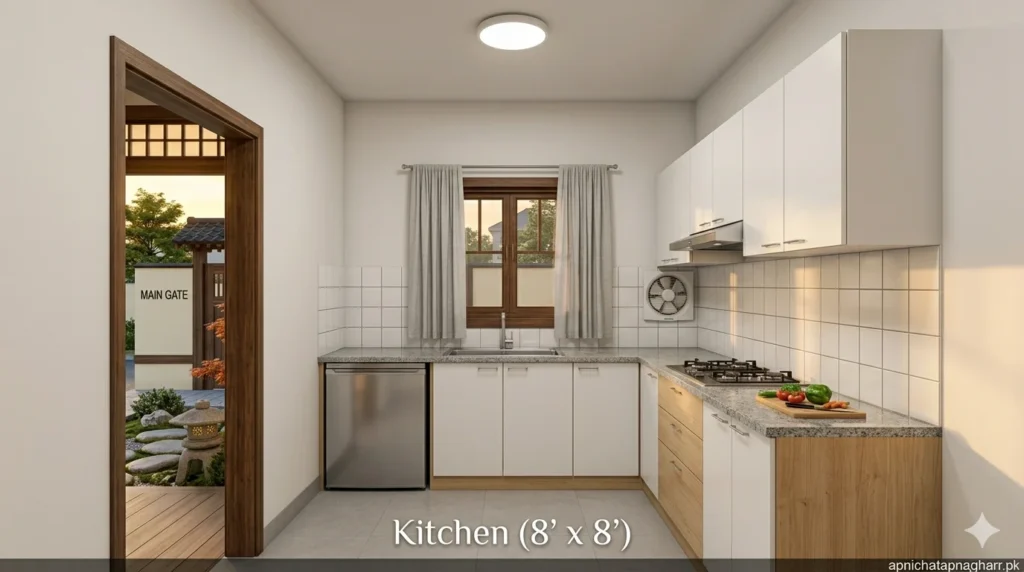

L-shaped kitchen 8x8 feet showing white upper and lower cabinets grey countertop stainless steel sink under window cooking range with exhaust fan small refrigerator in corner and light grey floor tiles for 3 marla Japanese style roof house apnichatapnagharr.pk — L-shaped kitchen (64 sq ft) with white cabinets, grey countertop, stainless steel sink under window, 2-3 burner cooking range with exhaust fan, small refrigerator in corner, and light grey floor tiles.

Is kitchen mein kya rakh sakte hain:

L-shaped white cabinets
Grey countertop
Sink under window
2-3 burner cooking range with exhaust fan
Small refrigerator in corner

Window: Kitchen mein ek window honi chahiye. Window 3′ x 3′ ki ho sakti hai. Window back ya side wall par ho sakti hai.

Floor: Light grey tiles (easy to clean)

Walls: White tiles on backsplash area

Yeh kitchen 2-3 members ki family ke liye sufficient hai. Daily cooking aasani se ho sakti hai.

Agar aapko apply karne ka tarika nahi pata to hamara How to Apply article zaroor parhein.

Master Bedroom – 12′ x 12′ (Back Side)

Master bedroom 12 feet x 12 feet ka hai. Yeh 144 square feet ka hai. Yeh passage ke end mein hai (back side).

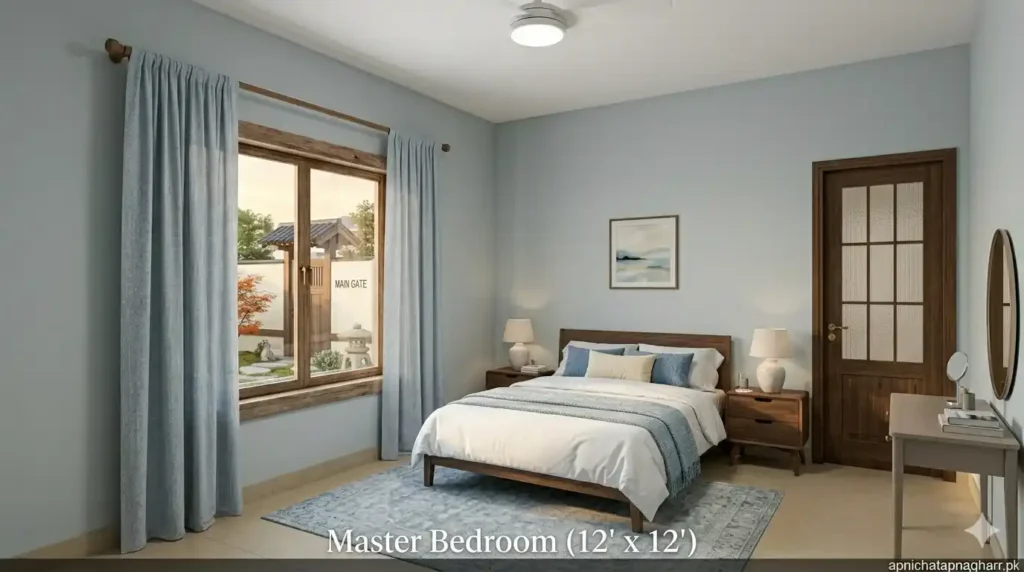

Master bedroom interior 12x12 feet showing double bed with headboard two nightstands wardrobe dressing table with mirror window with light blue curtains and light blue calming walls for 3 marla Japanese style roof house apnichatapnagharr.pk — Spacious master bedroom (144 sq ft) with double bed, two nightstands, wardrobe, dressing table, window with light blue curtains, and light blue calming walls.

Is bedroom mein kya rakh sakte hain:

Double bed (6′ x 6’6″)
2 nightstands (one on each side)
Wardrobe (4′ x 2′ ya 6′ x 2′)
Dressing table (optional)

Window: Bedroom mein ek window honi chahiye. Window 4′ x 4′ ki ho sakti hai. Window back ya side wall par ho sakti hai.

Walls: Light blue ya soft grey color (calm and relaxing)

Floor: Light beige tiles

Yeh master bedroom couple ke liye perfect hai. Bohat bara hai, sab kuch aa sakta hai.

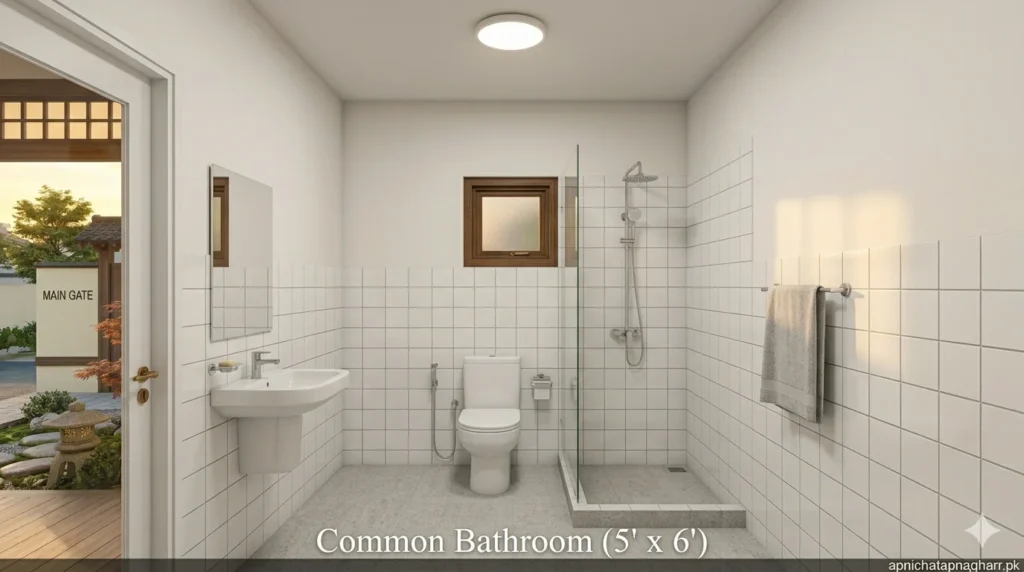

Common Bathroom – 5′ x 6′

Common bathroom 5 feet x 6 feet ka hai. Yeh 30 square feet ka hai. Yeh master bedroom ke paas hai.

Is bathroom mein kya hoga:

White commode
White sink with mirror
Shower area
Small high window for ventilation

Floor: Light grey anti-skid tiles (slippery nahi hota)

Walls: White ceramic tiles up to 4-5 feet height

Yeh bathroom common hai. Guest room, master bedroom, aur kitchen se aasani se access kiya ja sakta hai.

Passage – 8′ x 4′

Passage 8 feet x 4 feet ka hai. Yeh 32 square feet ka hai. Passage center mein hai.

Passage kisay connect karta hai:

Veranda se guest room
Veranda se master bedroom
Master bedroom se bathroom

Passage ki walls par paintings laga sakte hain. Passage mein light honi chahiye.

Japanese Style Roof – Detailed Design

Is design ki sab se khaas cheez Japanese style roof hai.

Close up 3D view of Japanese pagoda style roof showing curved upward edges overlapping layers dark grey black roof tiles wooden beam accents and slight slope for water drainage apnichatapnagharr.pk — Close-up 3D view of Japanese pagoda style roof showing curved upward edges, 2-3 overlapping layers, dark grey/black roof tiles, wooden beam accents, and slight slope for water drainage.

Japanese Roof Ke Features:

Feature	Detail
Style	Pagoda style
Edges	Slightly curved (upward at corners)
Layers	2 overlapping layers
Color	Dark grey or black
Material	Clay tiles or metal tiles
Slope	Medium slope for water drainage

Japanese roof ke faide:

Ghar ko unique look deta hai
Barish ka pani aasani se nikalta hai
Strong aur durable hota hai
Ghar ki value barhata hai

Japanese roof ke nuqsan:

Normal roof se thoda mehnga hota hai
Installation mein time lagta hai
Skilled workers chahiye

Agar aap unique design chahte hain to yeh roof aap ke liye best hai.

Apni Chhat Apna Ghar Loan for This Design

Is 3 marla single story house design ke liye aap Apni Chhat Apna Ghar scheme se loan le sakte hain.

Loan Details:

Feature	Detail
Maximum Loan Amount	Rs 15 lakh (1.5 million)
Interest Rate	0% (completely interest-free)
Repayment Period	7 years
Monthly Installment	Approximately Rs 14,000
Grace Period	3 months before first installment

Eligibility Criteria:

Punjab resident (CNIC address)
Age 18 years or above
PMT score 60 or less
No existing residential property
NADRA verified head of family

Documents Required:

CNIC (front and back)
Land ownership documents
NSER / PSER registration
Income proof
Utility bill
Passport size photo

How to Apply:

Official portal acag.punjab.gov.pk par jayein
CNIC aur mobile number se register karein
Form fill karein
Documents upload karein
Submit karein
Balloting ka wait karein

Agar aapko loan ke baare mein mazeed janna hai to hamara How to Apply article parhein.

Construction Cost Estimation

Is 3 marla single story house (Japanese style roof) ki construction cost approximately kitni hogi? Yeh lo approximate estimate.

Material	Quantity	Cost (Rs)
Cement	250-280 bags	70,000 – 78,000
Bricks	14,000 – 16,000	42,000 – 48,000
Sand	400-500 cubic ft	12,000 – 15,000
Crush	450-550 cubic ft	18,000 – 22,000
Steel	1,300 – 1,600 kg	130,000 – 160,000
Tiles	1,300 – 1,600 sq ft	52,000 – 64,000
Japanese Roof Tiles	–	50,000 – 70,000
Paint	–	20,000 – 30,000
Plumbing	–	15,000 – 20,000
Electrical	–	12,000 – 18,000
Wood/Doors/Windows	–	50,000 – 70,000
Grey Structure Total		470,000 – 600,000
Finishing + Labour		300,000 – 400,000
Japanese Roof Extra		50,000 – 70,000
Total Construction Cost		820,000 – 1,070,000

Note: Japanese style roof normal roof se 50,000-70,000 rupees zyada hai. Total cost approximately 8.2 lakh to 10.7 lakh rupees hai. Apni Chhat Apna Ghar scheme 15 lakh tak loan deti hai to aap poori construction ke liye loan le sakte hain.

Frequently Asked Questions

Japanese style roof kya hota hai?

Japanese style roof pagoda style roof hoti hai. Iski edges curved hoti hain, overlapping layers hoti hain, aur dark grey ya black color tiles use hote hain.

Japanese roof normal roof se kitna mehnga hai?

Japanese roof normal roof se approximately 50,000-70,000 rupees zyada hota hai. Is mein special tiles aur skilled labour ki zaroorat hoti hai.

Is design mein kitne bedrooms hain?

Is design mein 1 master bedroom (12′ x 12′) aur 1 guest room (10′ x 10′) hai.

Guest room kahan hai?

Guest room left side par hai, main gate ke paas. Is se guests ko aane mein aasani hoti hai.

Kitchen kitni bari hai?

Kitchen 8′ x 8′ ki hai. 64 square feet ki hai. 2-3 members ki family ke liye sufficient hai.

Is design ki total construction cost kya hai?

Approximately 8.2 lakh to 10.7 lakh rupees. Japanese roof ki wajah se cost thori zyada hai.

Kya main is design mein changes kar sakta hun?

Haan aap apni need ke mutabiq changes kar sakte hain. Lekin construction start karne se pehle finalize karlein.

Japanese roof ke liye special permission chahiye?

Koi special permission nahi chahiye. Normal building bylaws follow karni hain. Apne area ki municipal limits check karlein.

Japanese roof barish mein leak to nahi karegi?

Nahi. Japanese roof specially barish ke liye design ki gayi hai. Curved edges aur overlapping layers pani ko aasani se nikaal deti hain.

Is design ke liye Apni Chhat Apna Ghar loan mil sakta hai?

Haan bilkul. 3 marla plot hai to aap 15 lakh tak interest-free loan le sakte hain.

Important Pages on Apni Chat Apna Ghar

Agar aapko scheme ke bare mein mazeed maloomat chahiye to yeh pages check karein:

Page	Link
Homepage	Visit
Eligibility Criteria	Read
Documents Required	Read
How to Apply	Read
District Quota	Read
Joint Family Scheme	Read
Apni Zameen Scheme	Read
Status Check	Read
Latest Progress	Read
FAQs	Read
Contact Us	Read

Conclusion

3 marla single story house with Japanese style roof un families ke liye best hai jo unique design chahti hain. Is design mein 1 master bedroom, 1 guest room, 1 kitchen, aur 1 common bathroom hai.

Key Takeaways:

✅ Japanese style pagoda roof (curved edges, overlapping layers)
✅ Master bedroom: 12′ x 12′ (144 sq ft)
✅ Guest room: 10′ x 10′ (left side, near main gate)
✅ Kitchen: 8′ x 8′ (right side)
✅ Common bathroom: 5′ x 6′
✅ Veranda: 8′ x 6′
✅ Construction cost: 8.2 lakh to 10.7 lakh
✅ Apni Chhat Apna Ghar loan: 15 lakh interest-free

Agar aap eligible hain to deri na karein. Apna 3 marla single story house with Japanese roof banayein aur apni chhat ka sapna poora karein.

Agar aapko koi problem ho to hamse Contact Us page par rabta kar sakte hain.
