3 Marla Corner Plot Double Story House with lawn

Complete 3D Guide for Corner Plot (817 sq ft) with Apni Chhat Apna Ghar Loan

Table of Content

★ Important Notice ★
Yeh website apnichatapnagharr.pk sirf informational purposes ke liye hai. Hum Government of Punjab ya PHATA se affiliated nahi hain. Official portal hai: acag.punjab.gov.pk

Article Overview

Is article mein aap ek 3 marla corner plot double story house design ke baare mein janenge. Corner plot hone ki wajah se do taraf roads hain. Is ka faida yeh hai ke aap alag se lawn, parking, aur side passages bana sakte hain.

Ground floor par 1 bedroom, 1 bethak, 1 TV lounge, 1 kitchen, aur 1 common bathroom hai. Second floor par 2 bedrooms, 1 common bathroom, 1 open kitchen, aur 1 sitting area hai. Terrace par 1 store room, 1 bathroom, 1 open laundry area, aur open terrace hai.

Is design mein aap Apni Chhat Apna Ghar scheme se 15 lakh tak interest-free loan le sakte hain.

Background History of Apni Chhat Apna Ghar Scheme

Apni Chhat Apna Ghar scheme Punjab government ki ek bohat successful housing scheme hai. Yeh scheme 2022 mein launch hui thi. CM Maryam Nawaz ne is scheme ko Punjab ki tareekh ki sab se badi housing initiative qarar diya tha.

Is scheme ka maqsad low-income families ko affordable housing provide karna hai. Scheme ke through families interest-free loan le kar apna ghar bana sakti hain. Loan ki maximum limit 15 lakh rupees hai. Yeh loan 7 saal mein easy installments mein wapas karna hai.

Scheme launch hone ke baad se ab tak 87,000+ houses complete ho chuke hain. 45,000 houses under construction hain. 1.9 million users ne registration karwa li hai. 133,990 families ko interest-free loan mil chuka hai.

Scheme ki recovery rate 99% hai. Yeh bohat impressive hai. Iska matlab hai ke log loan wapas kar rahe hain aur scheme successful hai.

February 2026 mein scheme ko joint families ke liye bhi expand kar diya gaya. Ab married sons jo parents ke saath rehte hain wo independent applicant ban sakte hain.

Apni Zameen Apna Ghar scheme ke through landless families ko free 3 marla plots bhi diye ja rahe hain. 2,000 families ko pehle phase mein plots allot hue hain.

Agar aap is scheme ke baare mein mazeed janna chahte hain to hamara Eligibility Criteria page zaroor parhein.

Plot Dimensions and Layout Overview

Yeh design specially corner plot ke liye banaya gaya hai. Corner plot mein do taraf road hoti hai. Is design mein front road aur left side road hai.

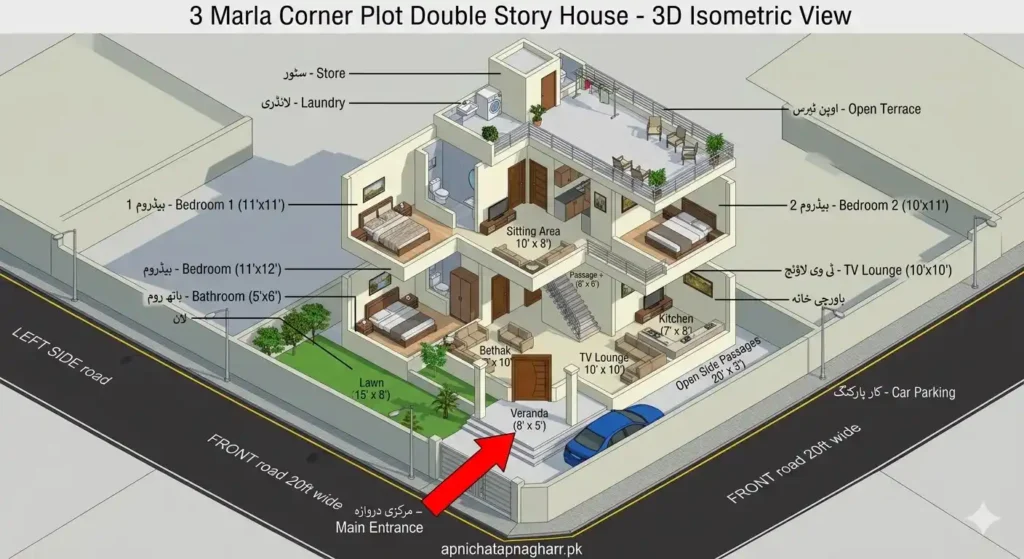

3D isometric view of 3 marla corner plot double story house showing ground floor second floor and terrace with veranda bethak TV lounge bedroom kitchen bathroom lawn parking two bedrooms open kitchen sitting area store laundry and open terrace apnichatapnagharr.pk — Complete 3D isometric view of 3 marla corner plot double story house showing ground floor (veranda, bethak, TV lounge, bedroom, kitchen, bathroom, lawn, parking), second floor (2 bedrooms, open kitchen, sitting area), and terrace (store, laundry, open terrace).

Plot Details:

Element	Measurement
Plot Type	Corner Plot
Total Area	817 sq ft (3 marla)
Front Road	20 ft wide
Left Side Road	15 ft wide
Ground Floor Construction	506 sq ft
Open Area (Lawn + Parking + Passages)	311 sq ft

Yeh 311 sq ft open area kahan use hogi:

Front lawn (15′ x 8′) – 120 sq ft
Car parking (10′ x 5′) – 50 sq ft
Left side passage (20′ x 3′) – 60 sq ft
Right side passage (20′ x 3′) – 60 sq ft
Courtyard / plants area – 21 sq ft

Corner plot hone ki wajah se aap ko do taraf se ventilation aur light milti hai. Ghar khula aur spacious lagta hai. Agar aapko district-wise quota ke baare mein janna hai to hamara District Based Quota page zaroor parhein.

Ground Floor Complete Layout (506 sq ft)

Ground floor par total 506 sq ft covered area hai. Baqi 311 sq ft open area hai (lawn, parking, side passages).

Ground Floor Rooms:

Room	Size (ft)	Area (sq ft)
Bedroom	11′ x 12′	132 sq ft
Bethak (Drawing Room)	10′ x 10′	100 sq ft
TV Lounge	10′ x 10′	100 sq ft
Kitchen	7′ x 8′	56 sq ft
Common Bathroom	5′ x 6′	30 sq ft
Passage + Stairs	8′ x 6′	48 sq ft
Veranda / Porch	8′ x 5′	40 sq ft

Open Areas on Ground Floor:

Area	Size (ft)	Area (sq ft)
Front Lawn	15′ x 8′	120 sq ft
Car Parking	10′ x 5′	50 sq ft
Left Side Passage	20′ x 3′	60 sq ft
Right Side Passage	20′ x 3′	60 sq ft

Main Entrance and Veranda

Sab se pehle baat karte hain main entrance ki. Corner plot ki front side par main entrance hai. Veranda 8 feet x 5 feet ka hai.

Veranda mein 2 small pillars hain. Wooden main door 3.5 feet chora hai. Door ka color wooden brown hai. Road se veranda tak 3-4 steps hain.

Veranda ke left side par lawn hai. Lawn 15 feet x 8 feet ka hai. Is mein green grass aur small plants laga sakte hain. Veranda ke right side par car parking hai. Car parking 10 feet x 5 feet ka hai. Ek small car aasani se khari ho sakti hai.

Main entrance se andar aate hi bethak hai. Bethak 10 feet x 10 feet ka hai. Yeh drawing room hai jahan guests baithte hain. Agar aapko is design ke liye documents chahiye to hamara Documents Required page zaroor parhein.

Bethak (Drawing Room) – 10′ x 10′

Bethak 10 feet x 10 feet ka hai. Yeh 100 square feet ka hai. Yeh veranda ke andar aate hi center mein hai.

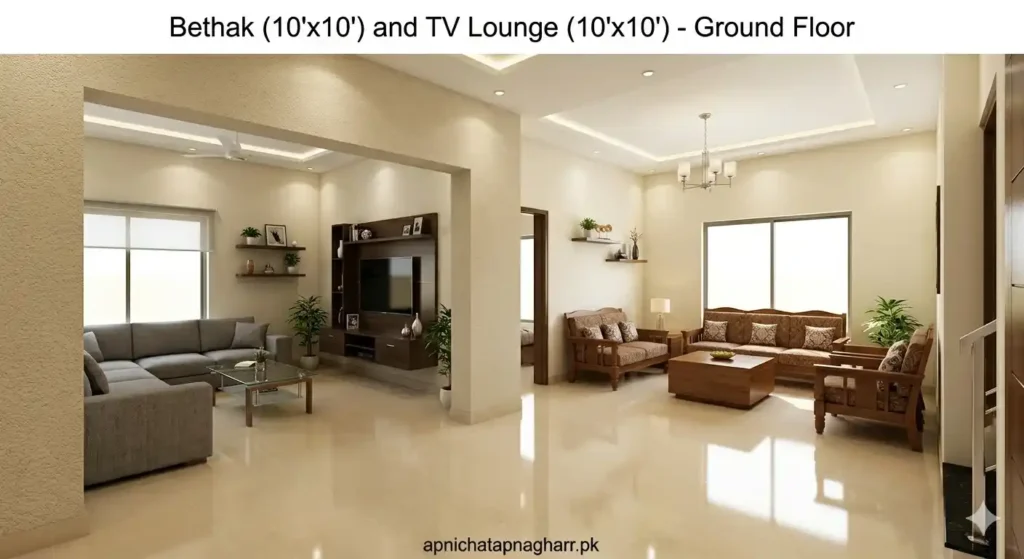

Open concept interior view of bethak 10x10 and TV lounge 10x10 on ground floor showing 3-2-1 sofa set L-shaped grey sofa wall mounted TV unit and center tables apnichatapnagharr.pk — Open concept interior view of bethak and TV lounge on ground floor. Bethak has 3-2-1 sofa set and center table. TV lounge has L-shaped grey sofa, wall mounted TV unit, and center table.

Is bethak mein sofa set rakh sakte hain. 3-2-1 sofa set aasani se aa sakta hai. Center table wooden brown color ka rakh sakte hain. Bethak ki walls light cream color ki rakh sakte hain. Floor light beige tiles ke rakh sakte hain. Ceiling simple white with fan and light.Bethak ke right side par TV lounge hai. Bethak ke left side par bedroom hai. Bethak ke samne veranda hai.

Yeh room guests ke liye hai. Family time bhi yahan guzar sakte hain.

TV Lounge – 10′ x 10′

TV lounge bhi 10 feet x 10 feet ka hai. Yeh 100 square feet ka hai. Yeh bethak ke right side par hai. Is TV lounge mein L-shaped sofa rakh sakte hain. L-shaped sofa corner mein lagta hai aur space bachata hai.

Wall mounted TV unit rakh sakte hain. TV unit white ya light wood color ki le sakte hain. Center table bhi rakh sakte hain. TV lounge ki floor light beige tiles ki ho sakti hai. Walls light cream color ki ho sakti hain. Ek accent wall light grey color ki bana sakte hain.

Yeh room family time ke liye hai. TV dekhna, guests ko bithana, ya family gathering sab ho sakta hai.

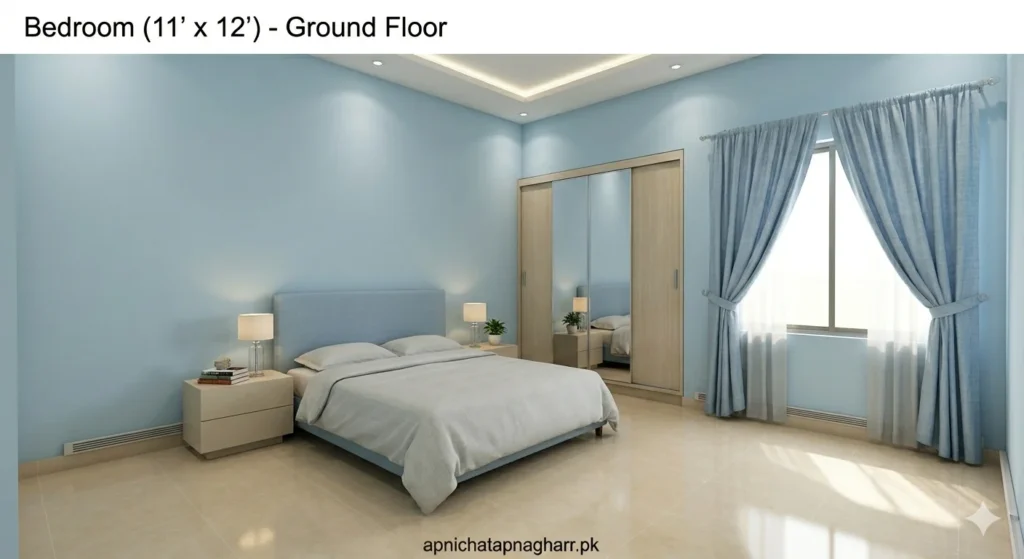

Bedroom – 11′ x 12′

Bedroom 11 feet x 12 feet ka hai. Yeh 132 square feet ka hai. Yeh bethak ke left side par hai.

Is bedroom mein double bed aasani se aa sakti hai. Double bed 6 feet x 6 feet 6 inches ki hoti hai. Bed ko center mein ya corner mein rakh sakte hain.

Do nightstands rakh sakte hain. Har nightstand 1.5 feet x 1.5 feet ka hota hai. Bed ke dono taraf rakh sakte hain. Wardrobe ke liye bhi jagah hai. 4 feet x 2 feet ka wardrobe lagaya ja sakta hai. Agar aap chaahein to 6 feet ka bada wardrobe bhi laga sakte hain.

Is bedroom mein ek window honi chahiye. Window 4 feet x 4 feet ki ho sakti hai. Window front ya side wall par ho sakti hai. Bedroom ki walls light blue ya soft grey color ki rakh sakte hain. Floor light beige tiles ke rakh sakte hain. Is se room calm aur relaxing lagega.

Agar aap joint family mein rehte hain to yeh design aap ke liye hai. Hamara Joint Family Apni Chat Apna Ghar article parhein.

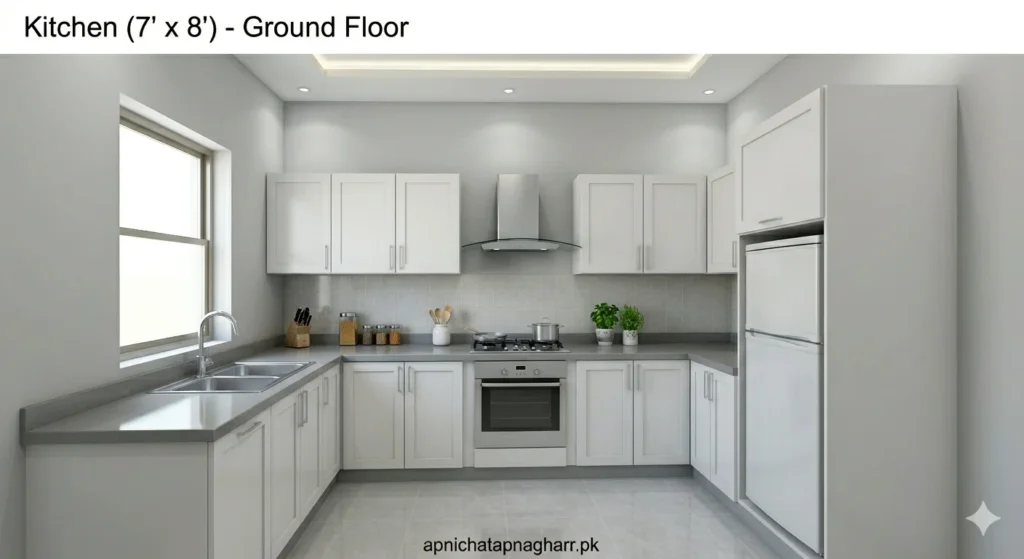

Kitchen – 7′ x 8′

Kitchen 7 feet x 8 feet ka hai. Yeh 56 square feet ka hai. Yeh passage ke end mein hai.

Is kitchen mein L-shaped cabinets lagaye ja sakte hain. L-shaped cabinets space save karte hain. White color ke cabinets lagayein to kitchen bara dikhta hai.

Upper cabinets bhi lagaye ja sakte hain. Upper cabinets mein grocery aur bartan rakh sakte hain. Sink window ke neeche rakhna chahiye. Window 3 feet x 3 feet ki ho sakti hai. Sink stainless steel ka hona chahiye.

Cooking range 2-3 burners wala rakh sakte hain. Exhaust fan bhi lagana chahiye. Is se smoke kitchen se bahar nikal jata hai. Kitchen ki floor light grey tiles ki honi chahiye. Tiles easy to clean hoti hain. Walls par white tiles backsplash ke liye lagaye ja sakte hain.

Yeh kitchen 2-3 members ki family ke liye sufficient hai. Daily cooking aasani se ho sakti hai.

Common Bathroom – 5′ x 6′

Common bathroom 5 feet x 6 feet ka hai. Yeh 30 square feet ka hai. Yeh bedroom ke neeche hai.

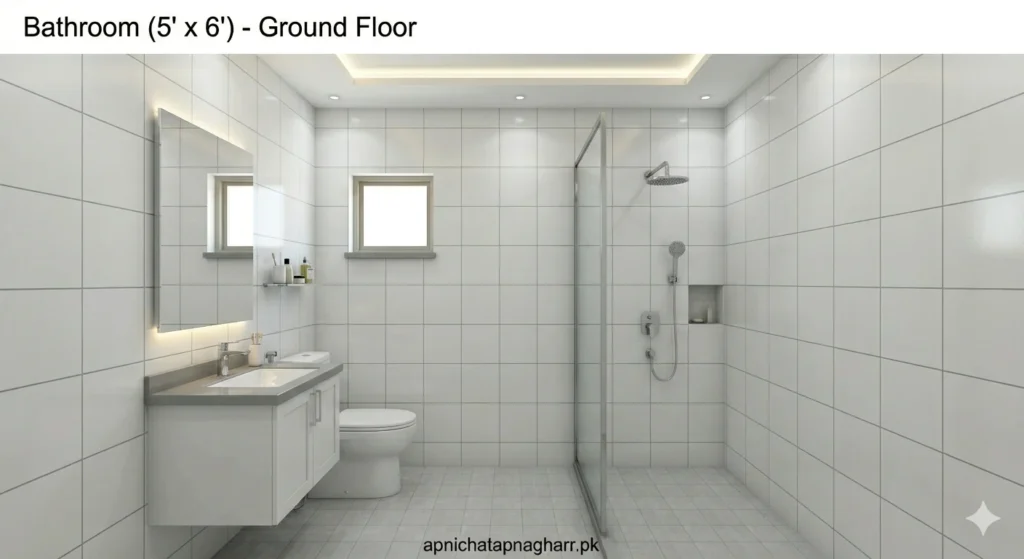

Bathroom 5x6 feet showing white commode sink with mirror shower area small high window for ventilation and light grey anti-skid floor tiles for 3 marla corner plot house apnichatapnagharr.pk — Ground floor bathroom (30 sq ft) with white commode, sink with mirror, shower area, small high window for ventilation, and light grey anti-skid floor tiles.

Is bathroom mein commode, sink, aur shower aasani se aa sakte hain. Commode 1.5 x 2.5 feet ka hota hai. Sink 1.5 x 1.5 feet ka hota hai. Shower area 2×2 feet ka hota hai.

Bathroom mein small window honi chahiye. Window 2 feet x 2 feet ki ho sakti hai. Is se ventilation hoti hai aur light bhi andar aati hai. Floor light grey anti-skid tiles ki honi chahiye. Is se slippery nahi hota. Walls white ceramic tiles ki honi chahiye. Tiles 4-5 feet tak lagayein.

Yeh bathroom common hai. Bethak, TV lounge, aur bedroom se aasani se access kiya ja sakta hai.

Passage and Stairs – 8′ x 6′

Passage 8 feet x 6 feet ka hai. Yeh 48 square feet ka hai. Passage center mein hai. Sab rooms ko connect karta hai.

Passage ki ek side par stairs hai. Stairs second floor tak jati hai. Stairs 3 feet chori hai. Passage ki walls par paintings laga sakte hain. Ya family photos laga sakte hain. Passage mein light honi chahiye. Ceiling light ya wall lights laga sakte hain.

Is passage ki wajah se ghar khula aur spacious lagta hai. Har room tak aasani se pohancha ja sakta hai. Agar aapko apply karne ka tarika nahi pata to hamara How to Apply article zaroor parhein.

Second Floor Complete Layout (506 sq ft)

Second floor ground floor ke upar hai. Area bhi 506 square feet ka hai. Second floor par 2 bedrooms, 1 bathroom, 1 open kitchen, aur 1 sitting area hai.

Second Floor Rooms:

Room	Size (ft)	Area (sq ft)
Bedroom 1	11′ x 11′	121 sq ft
Bedroom 2	10′ x 11′	110 sq ft
Common Bathroom	5′ x 6′	30 sq ft
Open Kitchen	6′ x 7′	42 sq ft
Sitting Area	10′ x 8′	80 sq ft
Passage + Stairs	8′ x 6′	48 sq ft

Bedroom 1 – 11′ x 11′

Bedroom 1 11 feet x 11 feet ka hai. Yeh 121 square feet ka hai. Yeh second floor ke left side par hai.

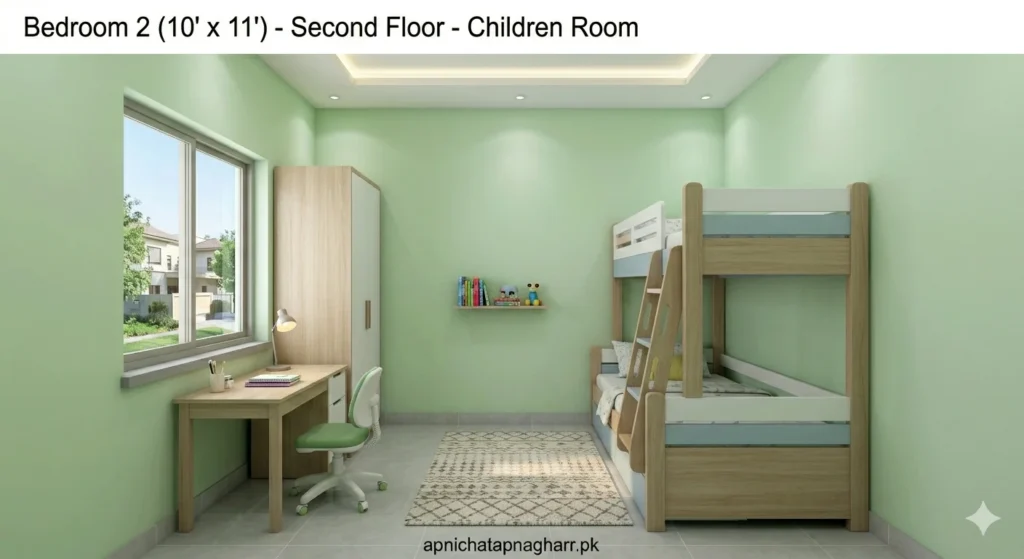

Second floor children bedroom 10x11 feet showing bunk bed for space saving small wardrobe study table near window with light green curtains and light green cheerful walls for 3 marla corner plot house apnichatapnagharr.pk — Second floor children bedroom (110 sq ft) with bunk bed (space saving), small wardrobe, study table near window, and light green cheerful walls.

Is bedroom mein double bed aasani se aa sakti hai. Wardrobe aur nightstands bhi aa sakte hain. Yeh bedroom couple ya ek bache ke liye hai. Agar aap ke do bache hain to bedroom 2 unke liye hai.

Bedroom 2 – 10′ x 11′

Bedroom 2 10 feet x 11 feet ka hai. Yeh 110 square feet ka hai. Yeh second floor ke right side par hai.

Is bedroom mein double bed ya bunk bed rakh sakte hain. Bunk bed se space bachti hai. Wardrobe bhi rakh sakte hain.

Yeh bedroom children ke liye best hai. Agar aap ke do bache hain to unhein ek room de sakte hain.

Common Bathroom – 5′ x 6′

Second floor ka bathroom bhi 5 feet x 6 feet ka hai. Yeh 30 square feet ka hai. Yeh bedroom 2 ke neeche hai.

Is bathroom mein bhi commode, sink, aur shower hai. Small window bhi hai ventilation ke liye.

Open Kitchen – 6′ x 7′

Open kitchen 6 feet x 7 feet ka hai. Yeh 42 square feet ka hai. Yeh second floor ke back side par hai.

Yeh open kitchen hai. Is mein chotay cabinets, sink, aur cooking range hai. Chhoti refrigerator bhi rakh sakte hain.

Open kitchen sitting area ke saath connected hai. Is se ghar khula lagta hai.

Sitting Area – 10′ x 8′

Sitting area 10 feet x 8 feet ka hai. Yeh 80 square feet ka hai. Yeh second floor ke center front mein hai.

Is sitting area mein sofa, TV unit, aur center table rakh sakte hain. Yeh family time ke liye hai.

Sitting area ke saath small balcony bhi hai (optional). Balcony front road ko face karti hai.

Terrace – Partial Floor (215 sq ft)

Terrace second floor ke upar hai. Poori floor nahi hai, partial hai. Total 215 square feet ka area hai.

Terrace Areas:

Area	Size (ft)	Area (sq ft)
Store Room	5′ x 5′	25 sq ft
Bathroom	4′ x 4′	16 sq ft
Open Laundry	6′ x 4′	24 sq ft
Open Terrace	15′ x 10′	150 sq ft

Store Room: 5×5 ka hai. Is mein extra saman rakh sakte hain. Mausmi kapre, tools, aur extra ghar ka saman rakhne ke liye useful hai.

Bathroom: 4×4 ka small bathroom hai. Is mein commode aur sink hai. Terrace par baithe hue istemal kar sakte hain.

Open Laundry: 6×4 ka open area hai. Yahan washing machine rakh sakte hain. Kapre sukhane ke liye bhi use hota hai.

Open Terrace: 15×10 ka open area hai. Yahan chairs rakh sakte hain. Evening mein chai peene ke liye achi jagah hai. Small plants bhi rakh sakte hain.

Agar aapko status check karna hai to hamara Status Check Online article parhein.

Apni Chhat Apna Ghar Loan for This Design

Is 3 marla corner plot double story house design ke liye aap Apni Chhat Apna Ghar scheme se loan le sakte hain.

Loan Details:

Feature	Detail
Maximum Loan Amount	Rs 15 lakh (1.5 million)
Interest Rate	0% (completely interest-free)
Repayment Period	7 years
Monthly Installment	Approximately Rs 14,000
Grace Period	3 months before first installment

Eligibility Criteria:

Punjab resident (CNIC address)
Age 18 years or above
PMT score 60 or less
No existing residential property
NADRA verified head of family

Documents Required:

CNIC (front and back)
Land ownership documents
NSER / PSER registration
Income proof
Utility bill
Passport size photo

How to Apply:

Official portal acag.punjab.gov.pk par jayein
CNIC aur mobile number se register karein
Form fill karein
Documents upload karein
Submit karein
Balloting ka wait karein

Agar aapko loan ke baare mein mazeed janna hai to hamara How to Apply article parhein.

Construction Cost Estimation

Is 3 marla corner plot double story house ki construction cost approximately kitni hogi? Yeh lo approximate estimate.

Material	Quantity	Cost (Rs)
Cement	450-500 bags	126,000 – 140,000
Bricks	25,000 – 28,000	75,000 – 84,000
Sand	700-800 cubic ft	21,000 – 24,000
Crush	800-900 cubic ft	32,000 – 36,000
Steel	2,500 – 3,000 kg	250,000 – 300,000
Tiles	2,500 – 3,000 sq ft	100,000 – 120,000
Paint	–	30,000 – 40,000
Plumbing	–	30,000 – 40,000
Electrical	–	25,000 – 35,000
Wood/Doors/Windows	–	80,000 – 100,000
Grey Structure Total		770,000 – 920,000
Finishing + Labour		500,000 – 600,000
Total Construction Cost		1,270,000 – 1,520,000

Note: Yeh double story house hai is liye cost zyada hai. Approximately 12.7 lakh se 15.2 lakh rupees lag sakte hain. Apni Chhat Apna Ghar scheme 15 lakh tak loan deti hai to aap almost poori construction ke liye loan le sakte hain.

Frequently Asked Questions

Corner plot double story house ke liye Apni Chhat Apna Ghar loan mil sakta hai?

Haan bilkul. 3 marla plot hai to aap 15 lakh tak interest-free loan le sakte hain. Corner plot ya normal plot dono ke liye same rules hain.

Ground floor par kitne bedrooms hain?

Ground floor par 1 bedroom hai (11′ x 12′). Second floor par 2 bedrooms hain (11′ x 11′ aur 10′ x 11′).

Open area kitna hai?

Ground floor par 311 sq ft open area hai. Is mein lawn (120 sq ft), car parking (50 sq ft), aur side passages (120 sq ft) hain.

Second floor par open kitchen kaise use karein?

Open kitchen second floor par hai. Is mein chotay cabinets, sink, aur cooking range hai. Chhoti family ke liye sufficient hai.

Terrace par store room kyun zaroori hai?

Store room mein extra saman rakh sakte hain. Mausmi kapre, tools, aur extra ghar ka saman rakhne ke liye useful hai.

Is design ki total construction cost kya hai?

Approximately 12.7 lakh se 15.2 lakh rupees. Double story hai to cost zyada hai.

Kya main is design mein changes kar sakta hun?

Haan aap apni need ke mutabiq changes kar sakte hain. Lekin construction start karne se pehle finalize karlein.

Corner plot hone ke kya faide hain?

Corner plot mein do taraf roads hoti hain. Is se ventilation achi hoti hai, light aati hai, aur alag se lawn aur parking bana sakte hain.

Side passages kya hain?

Side passages 20′ x 3′ ke open areas hain. Yeh house aur boundary wall ke beech mein hain. Is se ghar ke around ghoom sakte hain aur maintenance aasan hai.

Kya terrace par bathroom zaroori hai?

Zaroori nahi lekin useful hai. Agar terrace par baithe hon to neeche jaane ki zaroorat nahi hoti.

Important Pages on Apni Chat Apna Ghar

Agar aapko scheme ke bare mein mazeed maloomat chahiye to yeh pages check karein:

Page	Link
Homepage	Visit
Eligibility Criteria	Read
Documents Required	Read
How to Apply	Read
District Quota	Read
Joint Family Scheme	Read
Apni Zameen Scheme	Read
Status Check	Read
FAQs	Read
Contact Us	Read

Conclusion

3 marla corner plot double story house design un families ke liye best hai jo extra space chahti hain. Ground floor par 1 bedroom, bethak, TV lounge, kitchen, aur bathroom hai. Second floor par 2 bedrooms, bathroom, open kitchen, aur sitting area hai. Terrace par store room, bathroom, laundry, aur open area hai.

Key Takeaways:

✅ Corner plot – do taraf roads, achi ventilation
✅ Ground floor: 506 sq ft covered + 311 sq ft open (lawn, parking, passages)
✅ Second floor: 506 sq ft covered (2 bedrooms, bathroom, open kitchen, sitting area)
✅ Terrace: 215 sq ft (store, bathroom, laundry, open area)
✅ Total construction cost: 12.7 lakh to 15.2 lakh
✅ Apni Chhat Apna Ghar loan: 15 lakh interest-free

Agar aap eligible hain to deri na karein. Apna corner plot double story house banayein aur apni chhat ka sapna poora karein.

Agar aapko koi problem ho to hamse Contact Us page par rabta kar sakte hain.
